Product Name: DJI Dock
Total Weight: 90 kg
Dimensions:

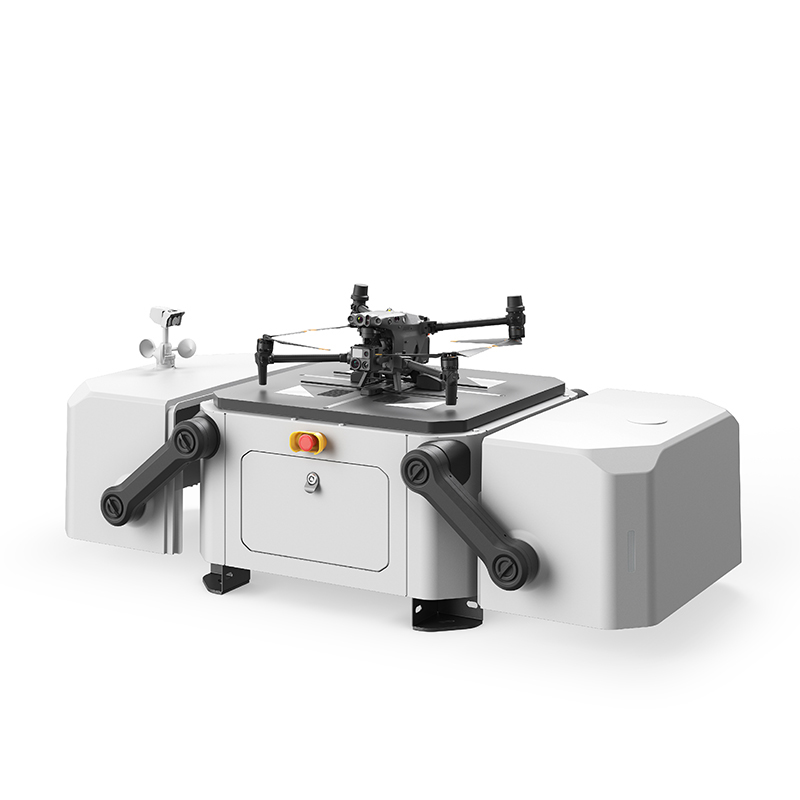

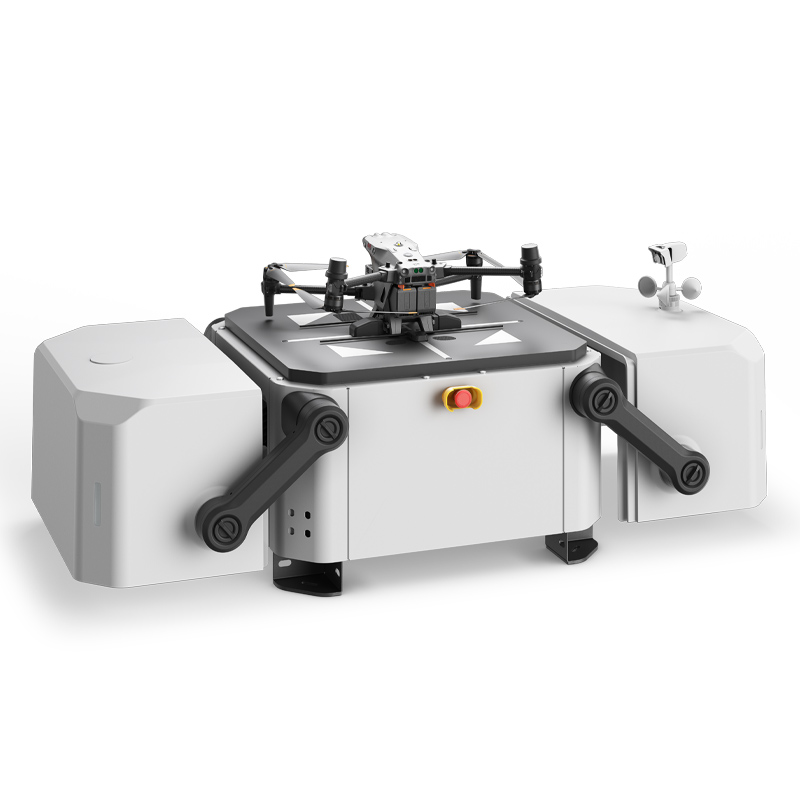

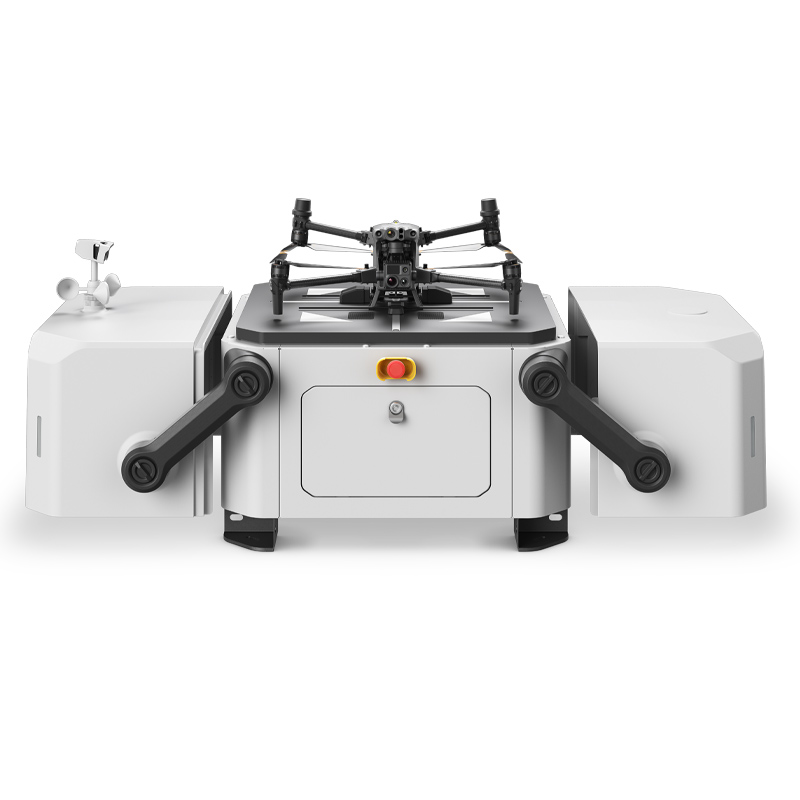

Cover Open (Weather Station excluded): 1,675 mm×895 mm×530 mm (L×W×H)

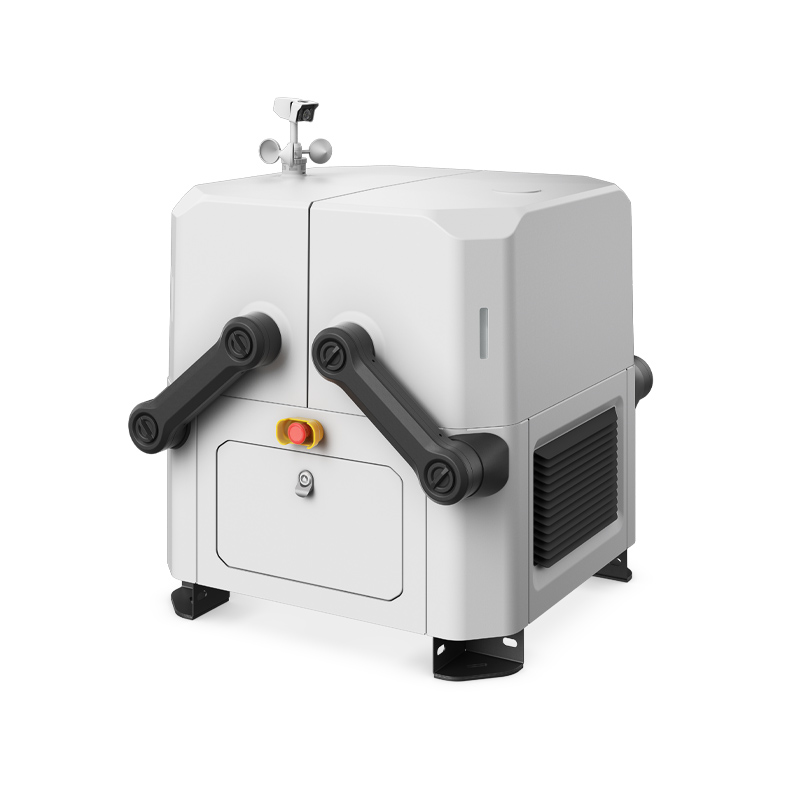

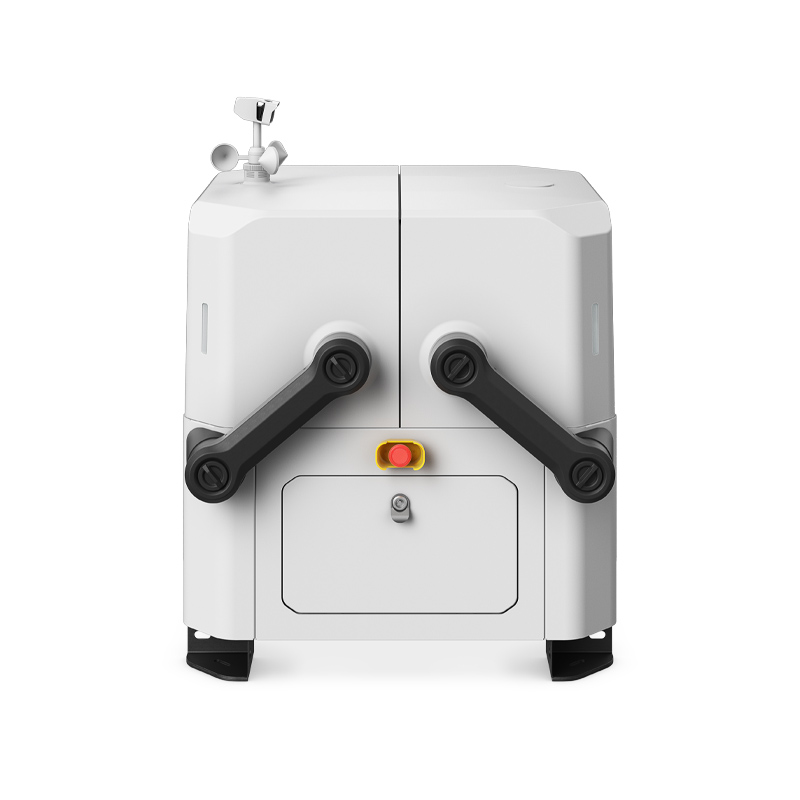

Cover Closed (Weather Station excluded): 805mm×895mm×840 mm (L×W×H)
Input Voltage: 100-240 VAC, 47-63 Hz
Max Input Power: 1,500 W
Operating Temperature: -35 to 50° C (-31 to 122° F)
Ingress Protection Rating: IP55
Number of Drones Accommodated: 1
Max Allowable Landing Wind Speed: 12 m/s
Max Operating Altitude: 4,000 m
Max Operating Radius: 7,000 m
Receiving Frequency of RTK Base Station Satellite
Simultaneously receive:
GPS
GLONASS
Galileo
Positioning Accuracy of RTK Base Station:
Horizontal: 1 cm+1 ppm (RMS)
Vertical: 2 cm+1 ppm (RMS)
Charging Performance
Output Voltage: 18 to 26.1 V
Charging Time: 25 minutes
Note: This is if the ambient temperature is 25°C (77° F), and the aircraft is charged from 10% to 90%.
Video Transmission
Video Transmission System: O3 Enterprise
Operating Frequency:
5.725-5.850 GHz
Antennas:
Transmitter Power (EIRP):
5.8 GHz? <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
Air Conditioning System
Operating Voltage: 48 VDC
Air Conditioning Type: TEC Air Conditioning
Backup Battery
Battery Capacity: 12 Ah
Output Voltage: 24 V
Battery Type: Lead-acid Battery
Backup Battery Life: > 5 hours
Network Access
Ethernet Access: 10/100/1000Mbps Adaptive Ethernet port
Sensor
Wind Speed Sensor: Supported
Rainfall Sensor: Supported
Ambient Temperature Sensor: Supported
Water Immersion Sensor: Supported
In-cabin Temperature Sensor: Supported
In-cabin Humidity Sensor: Supported
Vibration Sensor: Supported
Integrated Security Camera (On Cover)
Resolution: 1920×1080
Field of View (FOV): 180°
Auxiliary Light: Supported, Auxiliary White Light
Lightning Protection
AC Power Port: 40 kA (8/20?s waveform), meets EN/IEC 61643-11 TYPE 2 protection level requirements
Ethernet Port: 1.5 kA (8/20?s waveform), meets EN/IEC 61643-21 CATEGORY C protection level requirements
Supported Software
Applications: DJI Pilot 2 (connects to DJI Dock via DJI RC Plus for configuration and commissioning)
Cloud Platform: DJI FlightHub 2, 3rd Party Platforms through DJI Cloud API
Expansion Capability
Open Protocol: DJI Cloud API
Edge Computing: Internal power supply, data interface, and installation space
